Home 2011 Nissan LEAF SL Electric Structural Components & Rails

Structural Components & Rails for 2011 Nissan LEAF

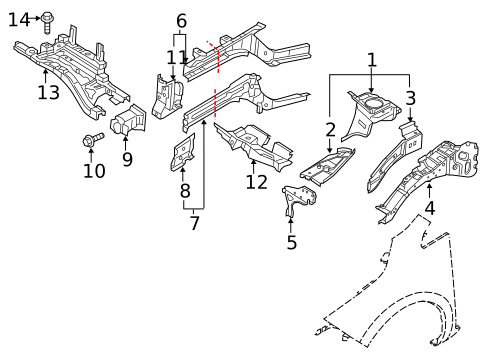

Structural Components & Rails for 2011 Nissan LEAF #0

1

10

11

12

13

14

2

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

1

641203NA0A - Body: Apron Assembly for Nissan Image

Apron Assembly

Nissan

Nissan

Positions: Right

1

641213NA0A - Body: Apron Assembly for Nissan Image

Apron Assembly

Nissan

Nissan

Positions: Left

2

641323NA0A - Body: Front Panel for Nissan Image

Front Panel

Nissan

Nissan

Positions: Right

2

641333NA0A - Body: Front Panel for Nissan Image

Front Panel

Nissan

Nissan

Positions: Left

3

641123NA0A - Body: Upper Reinforced for Nissan Image

Upper Reinforced

Nissan

Nissan

Positions: Right

Notes: PARTS: Part included with apron assembly.

3

641133NA0A - Body: Upper Reinforced for Nissan Image

Upper Reinforced

Nissan

Nissan

Positions: Left

Notes: PARTS: Part included with apron assembly.

4

641803NA0A - Body: Upper Rail for Nissan Image

Upper Rail

Nissan

Nissan

Positions: Right

4

641813NA0A - Body: Upper Rail for Nissan Image

Upper Rail

Nissan

Nissan

Positions: Left

5

641903NA0A - Body: Closing Plate for Nissan Image

Closing Plate

Nissan

Nissan

Positions: Right

5

641913NA0A - Body: Closing Plate for Nissan Image

Closing Plate

Nissan

Nissan

Positions: Left

6

G51113NAMA - Body: Inner Rail for Nissan Image

Inner Rail

Nissan

Nissan

Positions: Left

6

G51103NAMA - Body: Inner Rail for Nissan Image

Inner Rail

Nissan

Nissan

Positions: Right

7

751303NA0A - Body: Outer Rail for Nissan Image

Outer Rail

Nissan

Nissan

Positions: Right

7

751313NA0A - Body: Outer Rail for Nissan Image

Outer Rail

Nissan

Nissan

Positions: Left

8

751F73NA0A - Body: Outer Rail Bracket for Nissan Image

Outer Rail Bracket

Nissan

Nissan

Positions: Left

Notes: PARTS: Part included with inner rail.

8

751F63NA0A - Body: Outer Rail Bracket for Nissan Image

Outer Rail Bracket

Nissan

Nissan

Positions: Right

Notes: PARTS: Part included with inner rail.

9

751153NA0A - Body: Rail End for Nissan Image

Rail End

Nissan

Nissan

Positions: Left

9

751143NA0A - Body: Rail End for Nissan Image

Rail End

Nissan

Nissan

Positions: Right

10

1121N0041 - Body: Rail End Bolt for Nissan Image

Tank Strap Bolt

Nissan

Nissan

Positions: Left

Description: Fwd. Awd. All. 2wd.

MSRP $41.60

$27.70

Sold in Pack of 10

MSRP $41.60

$27.70

Sold in Pack of 10

11

751513NA0A - Body: Mount Bracket for Nissan Image

Mount Bracket

Nissan

Nissan

Positions: Left

Notes: PARTS: Part included with outer rail.

Description: Front suspension, front.

11

751503NA0A - Body: Mount Bracket for Nissan Image

Mount Bracket

Nissan

Nissan

Positions: Right

Notes: PARTS: Part included with outer rail.

Description: Front suspension, front.

12

759403NA0A - Body: Mount Bracket for Nissan Image

Mount Bracket

Nissan

Nissan

Positions: Right

Description: Front suspension, rear.

12

759413NA0A - Body: Mount Bracket for Nissan Image

Mount Bracket

Nissan

Nissan

Positions: Left

Description: Front suspension, rear.

13

758403NA0A - Body: Cross-member for Nissan Image

Cross-Member

Nissan

Nissan

Description: Inverter.

14

81B72252A - Body: Cross-member Bolt for Nissan Image

Cross-Member Bolt

Nissan

Nissan

MSRP $4.42

$3.21

MSRP $4.42

$3.21
